Quantium series retail dspensers

Key features

Q510M retail dispensers

Media

Use your dispenser to promote your products and services. The optional multimedia display provides any fuelling station with top-quality and refreshing imagery. Using our T-Media content management system, you can determine, directly from your office, which products will be promoted, when and where.

The Quantium 510M fuel dispenser now comes with a larger head as standard across the range, allowing customers to easily upgrade from the typical LCD display to VGA media display. Unlocking the power of media to boost sales on your forecourt and in the store has never been easier.

Your benefits at the pump:

  • Attention through the 17″ screen with integrated fuel gauge
  • Playback of video sequences, pictures and presentations possible
  • Integrated speakers
  • Content can be applied to your services and promotions

Vapour recovery

Not all vapour recovery solutions are the same: they vary in accuracy, reliability and power consumption. The technology they are built on also varies greatly. Tokheim is a leading specialist in the field of vapour recovery (VR). Its portfolio of electronic VR solutions is widely regarded as the most accurate, reliable and cost-effective products on the market today.

There are two options for Stage II VR dispensers: an open-loop solution (ECVR-OL) and a self-calibrating system (ECVR-SCS). TSG also provides and installs these as retrofit kits for Tokheim and third-party dispensers.

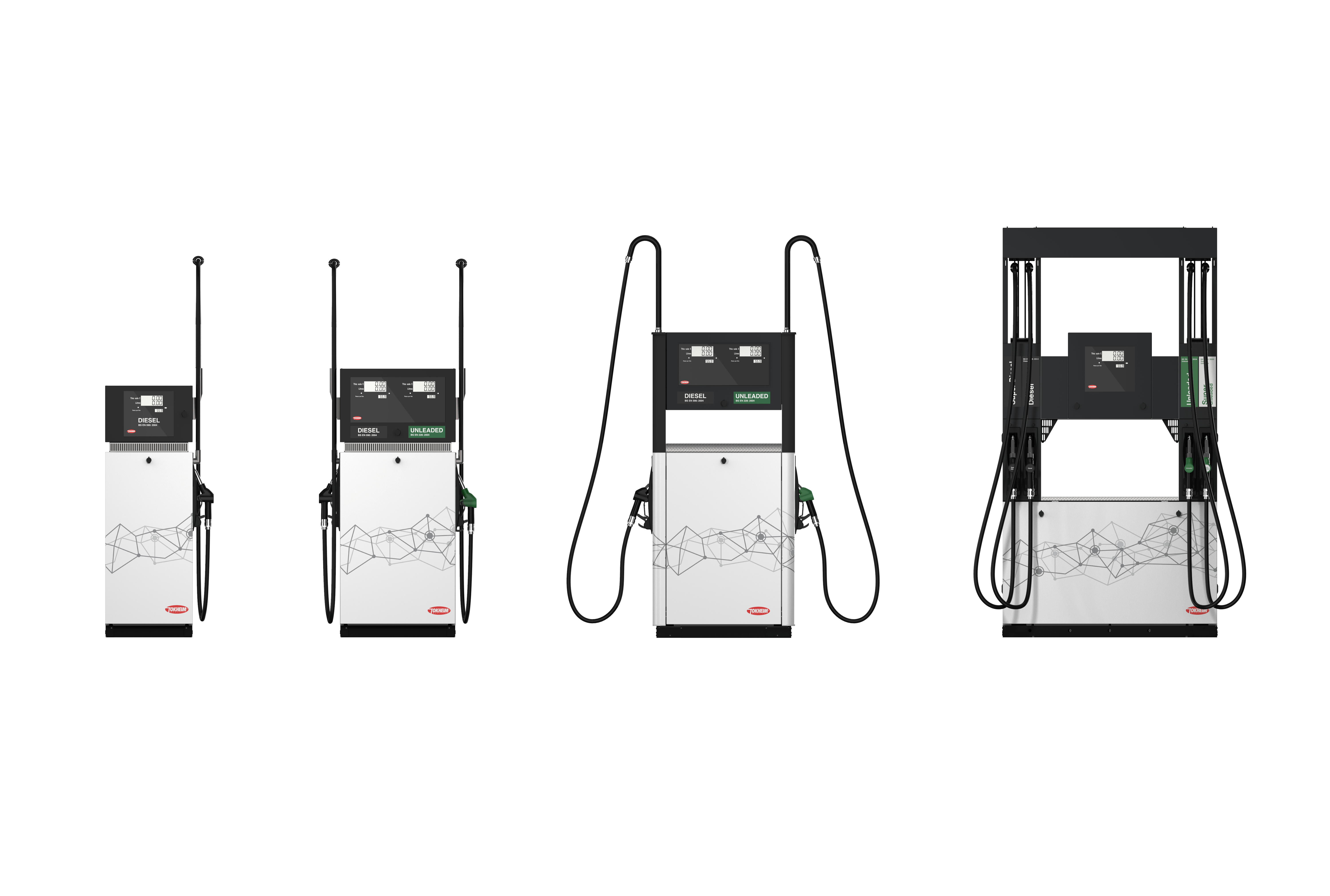

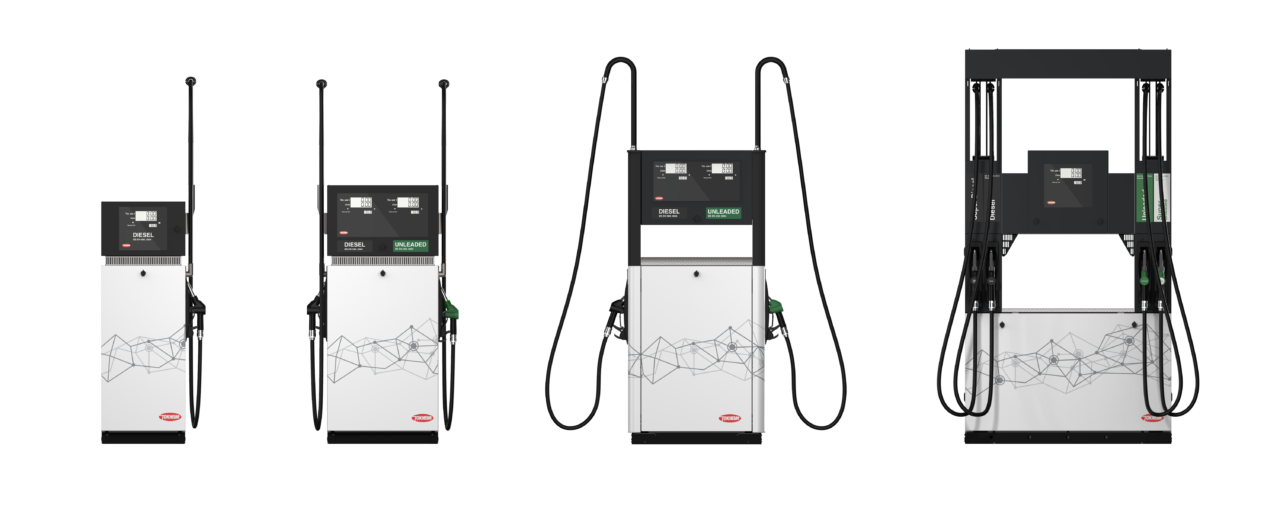

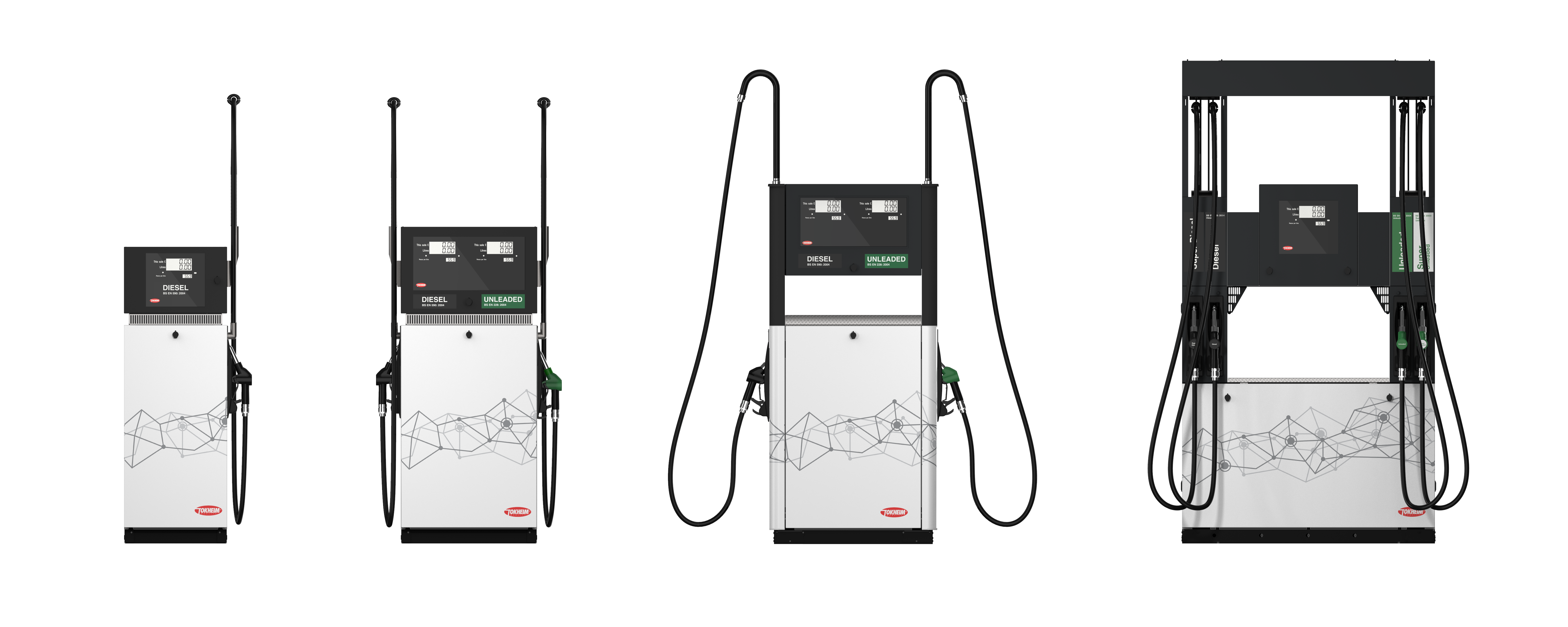

The Retail Dispenser family

The Tokheim Quantium™ 510 fuel dispenser set the standard for industry-recognised quality and unsurpassed versatility. The new Quantium™ 510M family of fuel dispensers builds on the solid foundation and reputation of its predecessor, adding a new line with new features, whilst staying true to what made the Quantium 510 fuel dispensers so impressive.

With four, industry-leading models, the Quantium 510M fuel dispensers are the perfect example of engineering excellence.

Built with field-proven, high-quality components, each model in the Quantium 510M fuel dispenser range delivers lower TCO, greater future-proofing, and improved maintainability. This unique combination of Tokheim history, engineering, innovation, and quality makes any Tokheim Quantium 510M fuel dispenser a sound investment for many years to come. Modular, reliable, safe and secure, you can be sure you are investing in a dispenser built to last.

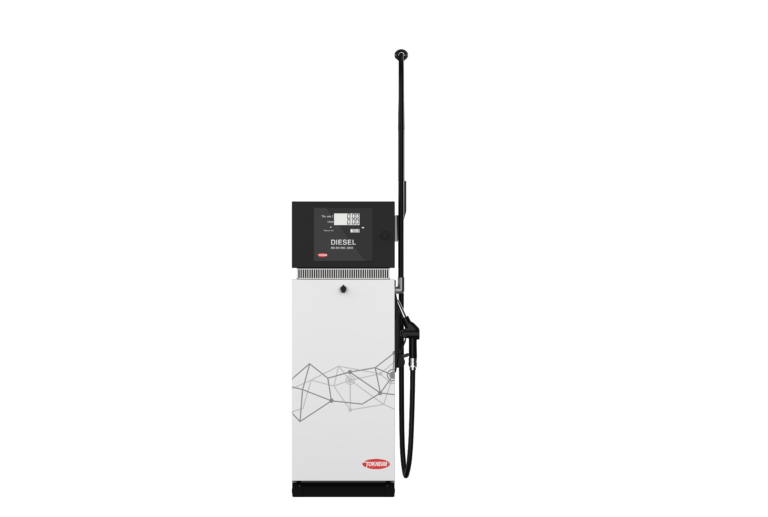

Q110

Q110

The Tokheim Quantium™ 110 fuel dispenser has been designed to offer the perfect level of functionality to support the smallest fuel retail sites, as well as private fleet companies. Small, but by no means a small player, this dispenser model can deliver high-speed, single-grade refuelling without impacting on space, giving you the freedom to make the best of your environment. Built with one nozzle as standard, with the option to upgrade to two nozzles, the Quantium™ 110 fuel dispenser can support dual-sided refuelling (VHS diesel fuel only). It’s so efficient and reliable at its job that you wouldn’t even know it was there. Except it is. And it’s exceptional.

No. of products 1
Max no. of nozzles 2
Flow rate 40/80/130 LPM
Payment integrated N
DiaLOG integrated Y
Hose Management Hook (standard) Springmast (optional)
Nozzle Reach 3.8m (hook) 4m (springmast)
Display Options 6-6-4 LCD (standard) 7-7-5 (optional)
Vapour Recovery Yes (unleaded only)
Q210

Q210

The Tokheim Quantium™ 210 fuel dispenser is ideal for Small retail fuel sites, who need the option to dispenser two fuel grades from one location. This model provides a quality fuel-dispensing platform for customers looking for an entry-level pump, but with more options and flexibility than the Quantium™ 110 fuel dispenser. This dispenser can easily slot into any forecourt or fleet environment due to its unassuming size without compromising on performance and offers high-speed fuelling of up to 130 LPM. It’s small enough to be discreet, but big enough to make a difference.

No. of products 2
Max no. of nozzles 2
Flow rate 40/80 40/80 switching, 130 LPM
Payment integrated Y
DiaLOG integrated Y
Hose Management Hook (standard) Springmast (optional)
Nozzle Reach 3.8m (hook) 4m (springmast)
Display Options 6-6-4 LCD (standard) 7-7-5 (optional)
Q310

Q310

The Quantium 310 fuel dispenser offers more configuration options and capability than the smaller models, with the option to dispense two fuel grades, and benefits from a spring mast based hose retractor system that enhances ease of use for customers. The Quantium 310 fuel dispenser can be customised to showcase the best of your brand: add colour, logos and graphics to create a unique look.

No. of products 2
Max. no of nozzles 4
Flow rate 40/80/130/200
DiaLOG integrated Y
Hose Management Spring mast or rigid mast
Nozzle Reach 4m
Display Options 6-6-4 LCD display, 7-7-5 LCD display
Vapour Recovery System Y

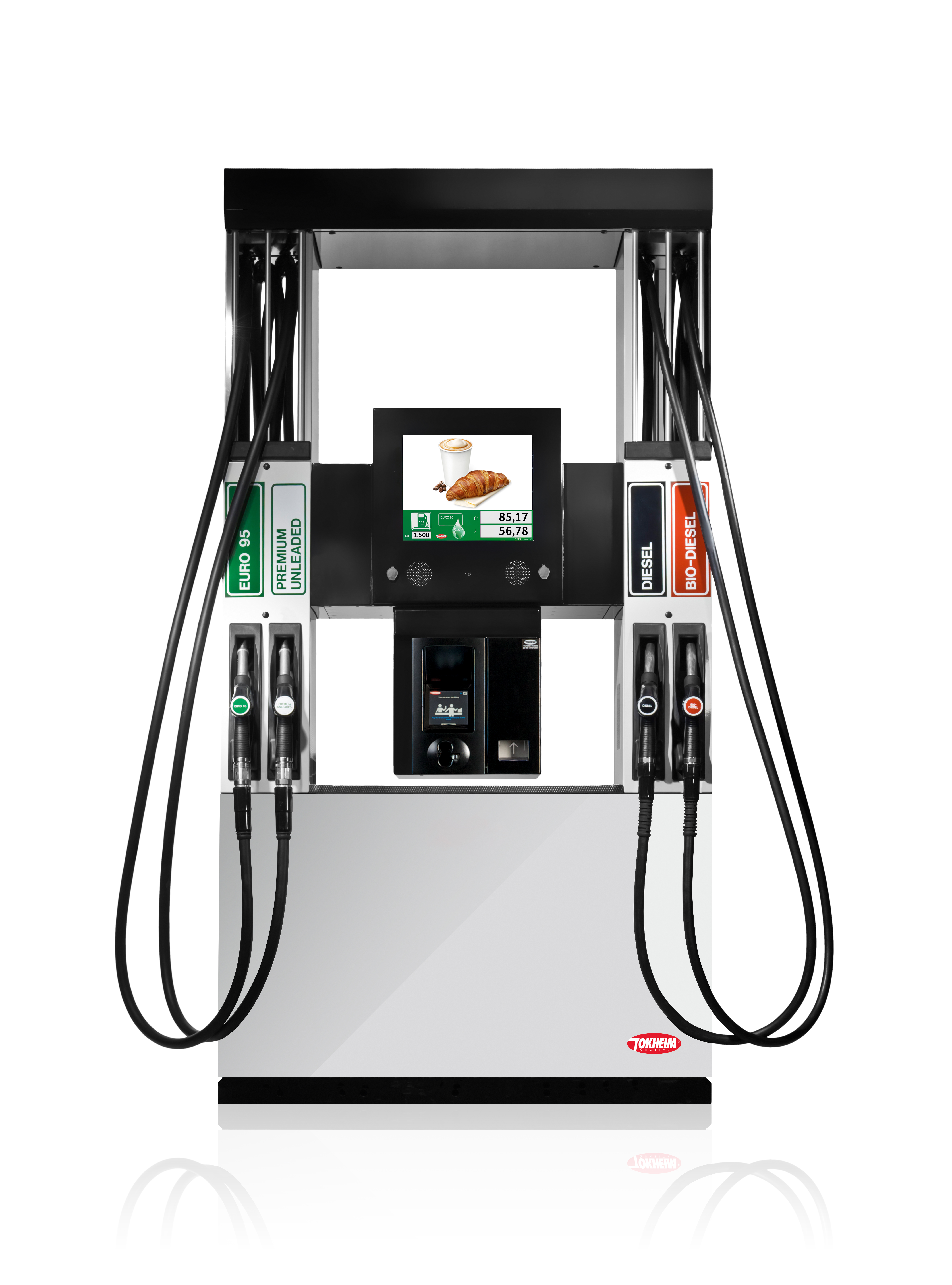

Q410

Q410

The perfect dispenser for your large fuel retail site.

No. of products 4
Max no. of nozzles 8
Flow rate 40/80/130 LPM
Payment integrated Y
DiaLOG integrated N
Hose Management Retraction or no retraction
Nozzle Reach 4m
Display Options 6-6-4, 7-7-5 or VGA
Vapour Recovery System Y
Quantium™ 410

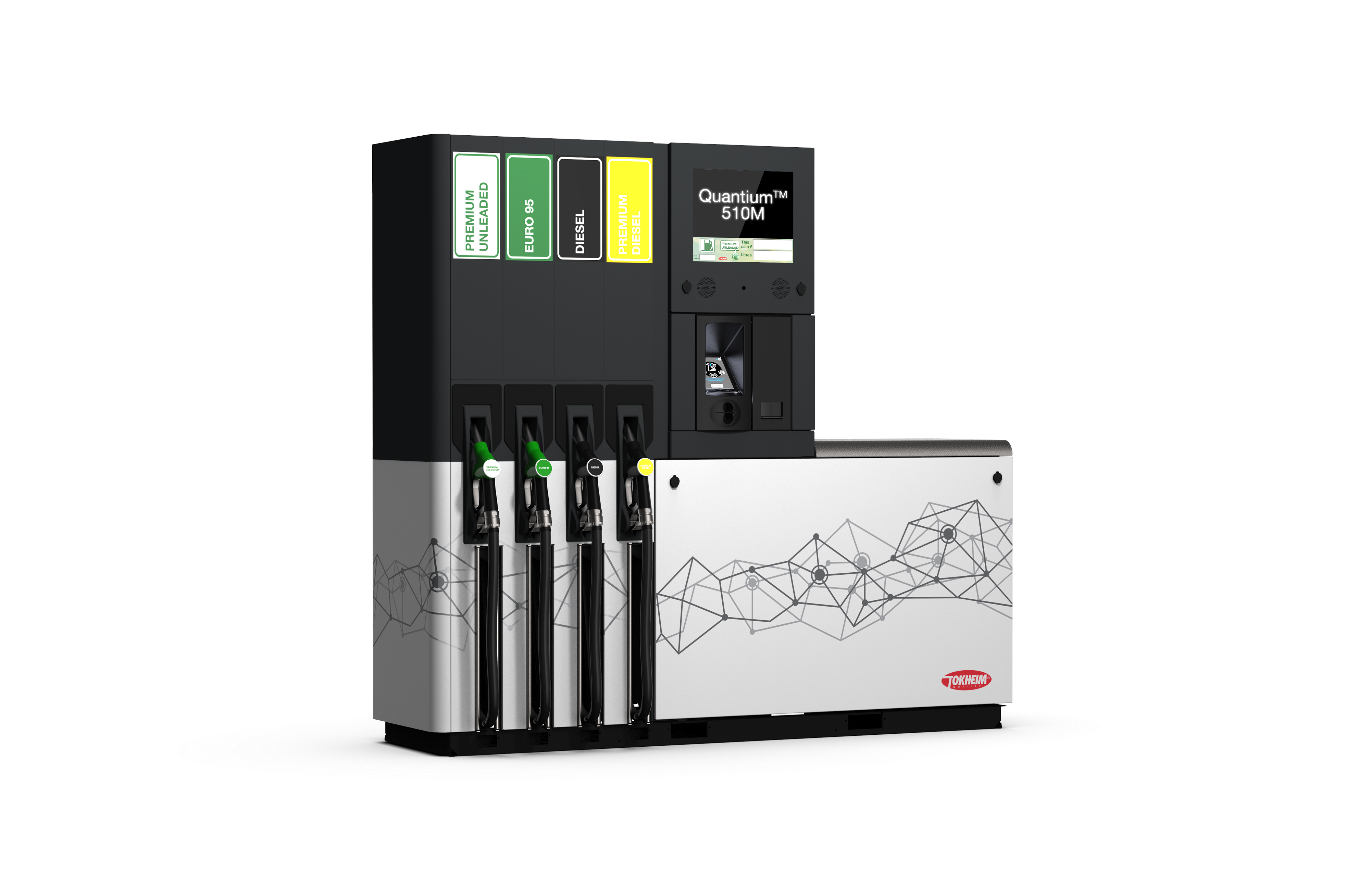

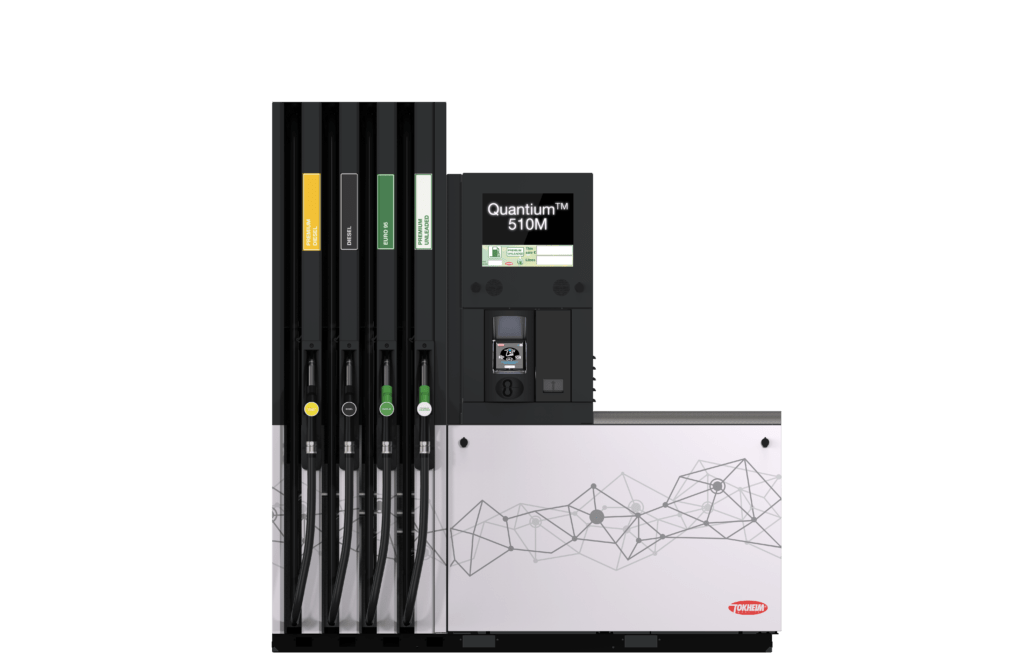

Q510M

Q510M

Whatever the set-up of your forecourt, the Quantium 510M fuel dispenser is designed to meet your needs: we’ve broken down the enhanced features and created easy-fit modular packages, putting you in charge of building a completely bespoke model that’s perfect for your forecourt. The Quantium 510M fuel dispenser gives you the freedom to choose the right level of functionality and deliver a first-class service to your customers. We’re putting you in the driving seat. We’ve made you the architect.

No. of products 5
Max no. of nozzles 10
Flow rate 40/80/130 and 40/80 dual speed
Payment integrated Y
DiaLOG integrated Y
Hose Management Full Hose Retraction
Nozzle Reach 4.2m
Display Options 6-6-4 LCD, 7-7-5 LCD 17" VGA
Vapour Recovery System Y
