Key features

MID certification

To sell fuel or AdBlue to a neighbour, the dispensing equipment needs to be weights and measures (W&M) approved. Since the Tokheim dispensers are also designed for use on public stations, the fleet range can also be supplied with W&M certification.

DiaLOG integrated solutions

To limit their footprint and reduce cost, most of the fleet dispensers can be equipped with a fuel management system – DiaLOG. This will be of particular interest for installations with only one dispenser installed. It should be noted that, for installations asking for W&M approval, the DiaLOG always needs to be connected to W&M-approved dispenser electronics (calculator).

fleet dispensers

Q310 Ultra-High Speed

The Quantium™ 310 UHS (Ultra High Speed) is a compact and robust dispenser dedicated to serve the largest of fuel tanks for industrial vehicles with ease. Equipped with Tokheim high-quality global components as standard, it provides speedy throughput at your forecourt, with a maximum flow rate of 200 litres per minute. The rigid mast-based hose retractor system makes it easy for customers to use with an impressive 4-metre nozzle reach. The quality, performance and reliability of the fuel dispenser is based upon years of research, analysis and testing by our design, engineering and manufacturing teams around the world. Ideal for; Industrial vehicles, Commercial vehicles, Maritime, Railway.

The Fuel Dispenser family

The Quantium range is well known for its quality, resulting in the lowest cost of ownership available in the market.

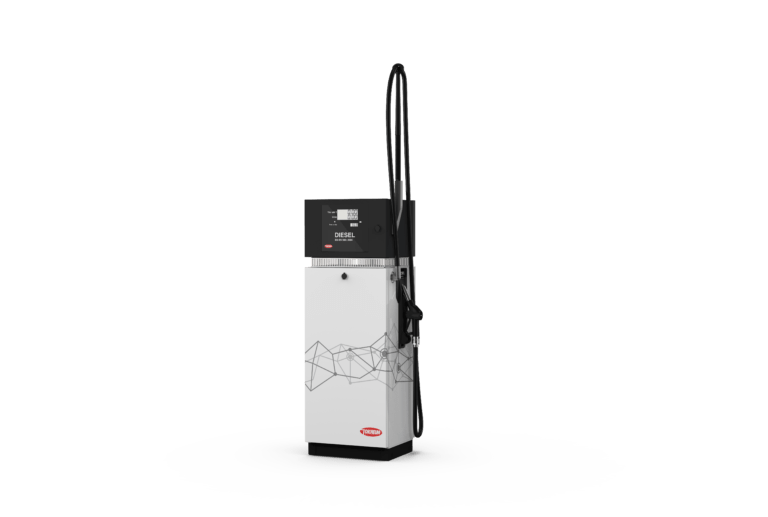

Q110

Q110

The Tokheim Quantium™ 110 fuel dispenser has been designed to offer the perfect level of functionality to support private fleet companies. Small, but by no means a small player, this dispenser model can deliver high-speed, single-grade refuelling without impacting on space, giving you the freedom to make the best of your environment. Built with one nozzle as standard, with the option to upgrade to two nozzles, the Quantium™ 110 fuel dispenser can support dual-sided refuelling (VHS diesel fuel only). It’s so efficient and reliable at its job that you wouldn’t even know it was there. Except it is. And it’s exceptional.

No. of products 1
Max no. of nozzles 2
Flow rate 40/80/130 LPM
Payment integrated N
DiaLOG integrated Y
Hose Management Hook (standard) Springmast (optional)
Nozzle Reach 3.8m (hook) 4m (springmast)
Display Options 6-6-4 LCD (standard) 7-7-5 (optional)
Vapour Recovery Yes (unleaded only)
fleet dispensers

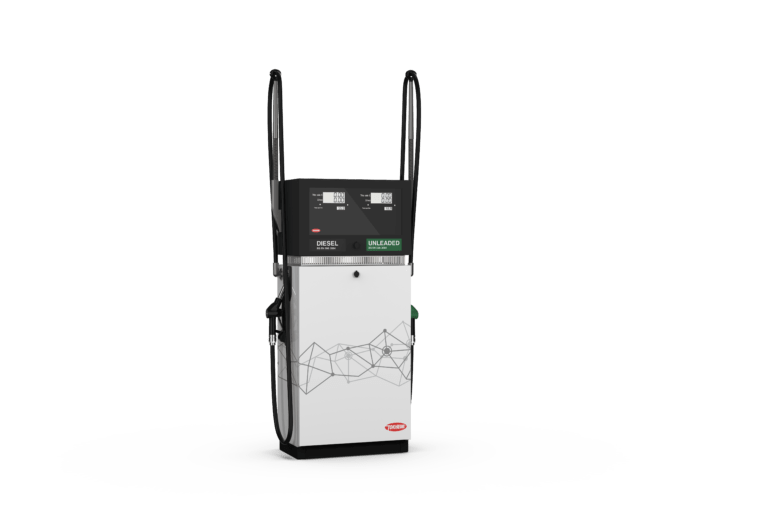

Q210

Q210

The Tokheim Quantium™ 210 fuel dispenser is ideal for private fleet companies, who need the option to dispenser two fuel grades from one location. This model provides a quality fuel-dispensing platform for customers looking for an entry-level pump, but with more options and flexibility than the Quantium™ 110 fuel dispenser.

This dispenser can easily slot into any forecourt or fleet environment due to its unassuming size without compromising on performance and offers high-speed fuelling of up to 130 LPM. It’s small enough to be discreet, but big enough to make a difference.

No. of products 2
Max no. of nozzles 2
Flow rate 40/80 40/80 switching, 130 LPM
Payment integrated Y
DiaLOG integrated Y
Hose Management Hook (standard) Springmast (optional)
Nozzle Reach 3.8m (hook) 4m (springmast)
Display Options 6-6-4 LCD (standard) 7-7-5 (optional)

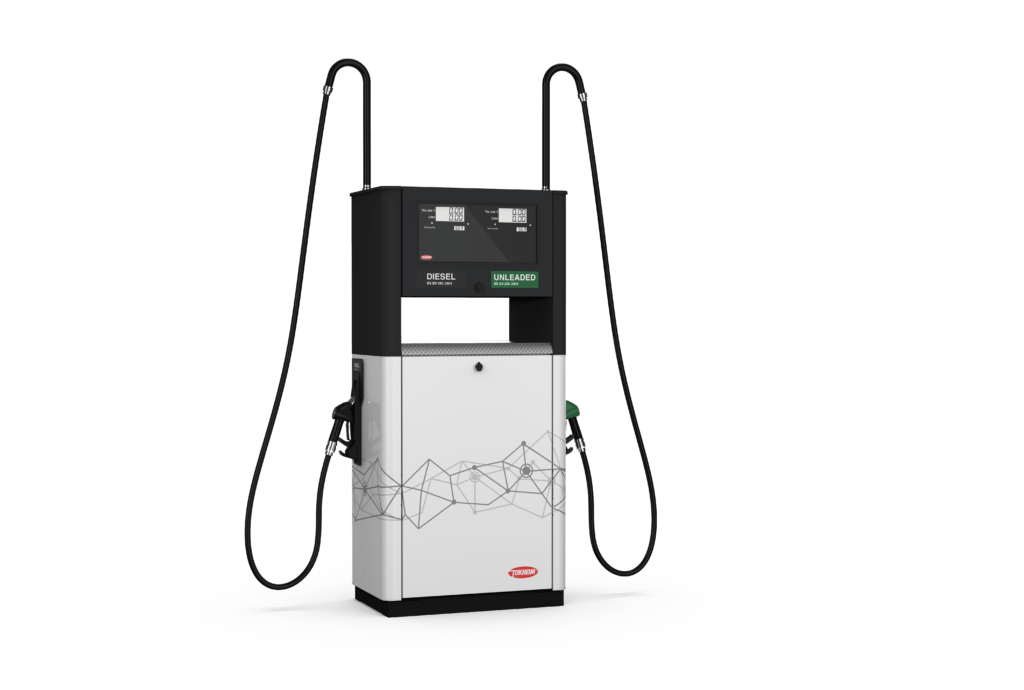

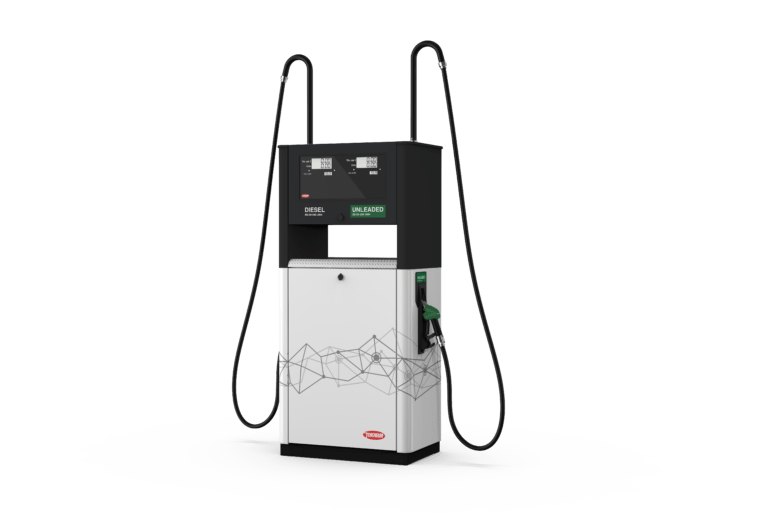

Q310

Q310

The Quantium 310 fuel dispenser offers more configuration options and capability than the smaller models, with the option to dispense two fuel grades, and benefits from a spring mast based hose retractor system that enhances ease of use for customers. The Quantium 310 fuel dispenser can be customised to showcase the best of your brand: add colour, logos and graphics to create a unique look.

No. of products 2
Max no. of nozzles 4
Flow rate 40/80/130/200
Payment integrated N
DiaLOG integrated Y
Hose Management Spring mast or rigid mast
Nozzle Reach 4m
Display Options 6-6-4 LCD display, 7-7-5 LCD display
Vapour Recovery System Y

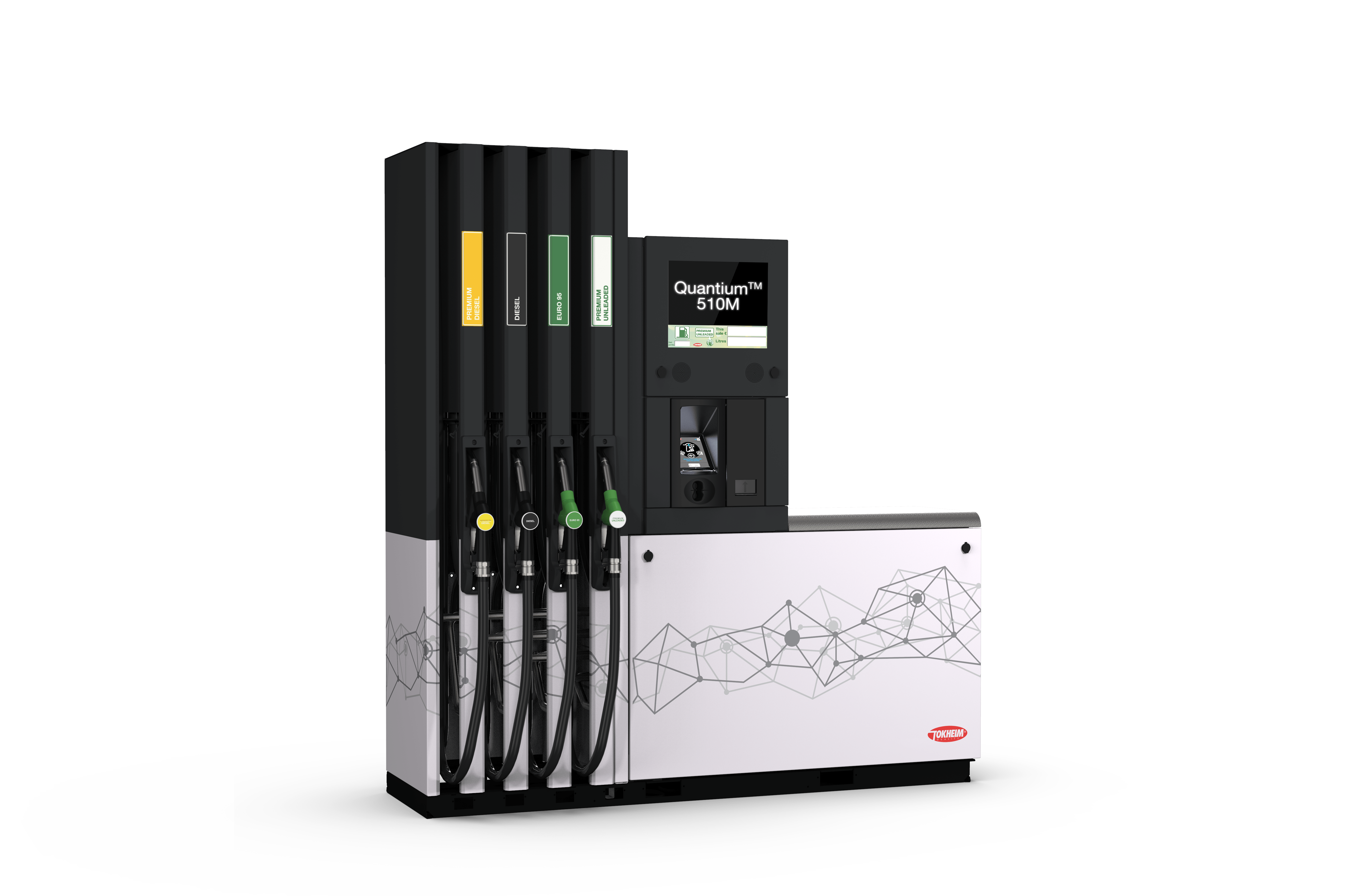

Q510M

Q510M

The Tokheim Quantium™ 510 fuel dispenser set the standard for industry-recognised quality and unsurpassed versatility. The Quantium™ 510M family of fuel dispensers builds on the solid foundation and reputation of its predecessor, adding a new line with new features, whilst staying true to what made the Quantium 510 fuel dispensers so impressive. With four, industry-leading models, the Quantium 510M fuel dispensers are the perfect example of engineering excellence.

Built with field-proven, high-quality components, each model in the Quantium 510M fuel dispenser range delivers lower TCO, greater future-proofing, and improved maintainability. This unique combination of Tokheim history, engineering, innovation, and quality makes any Tokheim Quantium 510M fuel dispenser a sound investment for many years to come. Modular, reliable, safe and secure, you can be sure you are investing in a dispenser built to last.

No. of products 5
Max no. of nozzles 10
Flow rate 40/80/130 and 40/80 dual speed
Payment integrated Y
DiaLOG integrated Y
Hose Management Full Hose Retraction
Nozzle Reach 4.2m
Display Options 6-6-4 LCD, 7-7-5 LCD 17" VGA
Vapour Recovery System Y
