The Helix dispenser is designed for them

  • Retailers

    need any advantage that can help to increase their volume, create customer loyalty and help drive customers into the store.

  • Technicians

    need to work quickly and more efficiently these days, so they need dispensers that not only simplify maintenance, but also require less of it.

  • Motorists

    just want to get in, get what they need, and get on with their day. They want to feel safe. They want clean fueling. And they may even want a snack.

The benefits of Helix



  • Smart design to enhance customer brand space
  • Improve attendant & motorist visibility across the forecourt
  • Minimize the effects of dirt & wear to maintain a clean appearance
  • Developed the Wayne Way with state of the art solutions

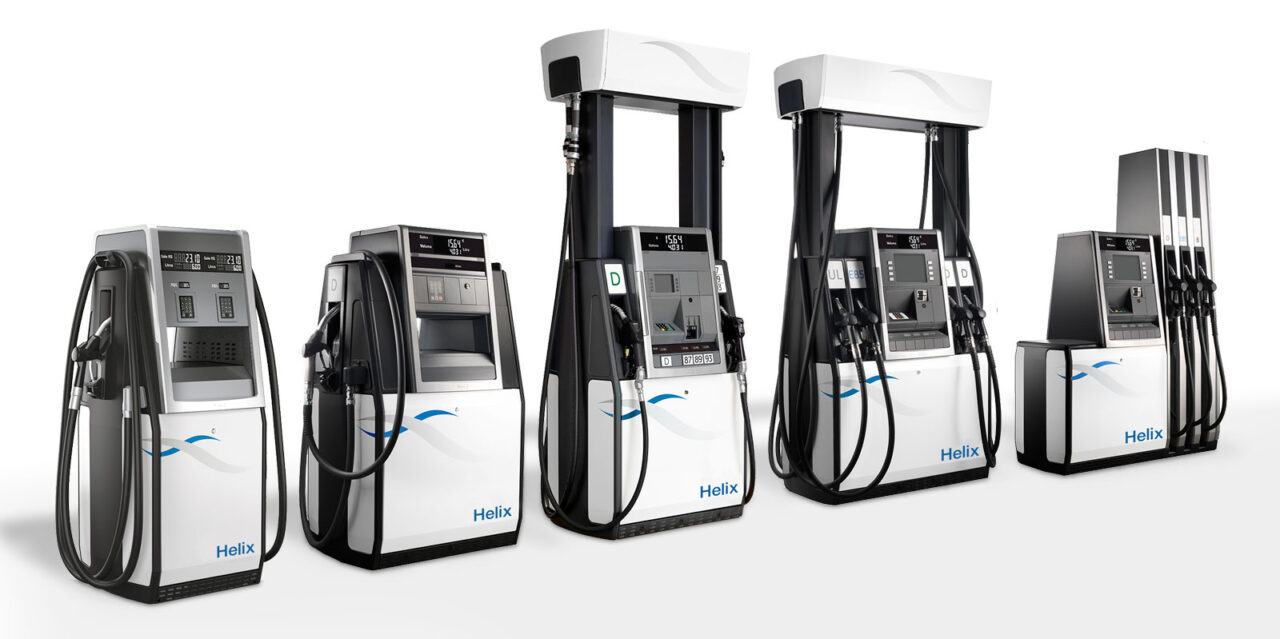

The Wayne Helix dispenser family

Designed for you. Engineered for the world.

Helix 1000

Helix 1000

Helix 1000 holds the smallest footprint in the Helix family. Equipped with the same Wayne DNA and core technologies as the rest of the family, the Helix 1000 is ideal for customers looking for basic features, high quality and reliability.

Grades 1-2 grades
Nozzles 1-2 nozzles
Flowrates 40 / 70 / 40-70 / 90 / 120
Orientation Island
Hose handling Hose hook 4,5 reach - Hose mast 3,5 reach
Meter technology iMeter

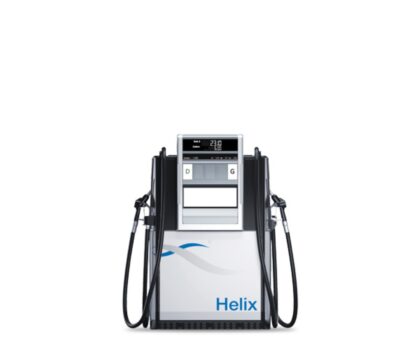

Helix 2000

Helix 2000

If working within a confined site, Helix 2000 delivers practicality and the latest features in a small package — ideal for small retail service stations, truck stops and specialty applications like marinas or airports.

Grades 1-2 grades
Nozzles 1-2 nozzles
Flowrates 40 / 70 / 40-70 / 90 / 120 / 180
Orientation Island - Lane
Hose handling Hose hook 4,5 reach - Hose mast 3,5 reach
Meter technology iMeter - Xflo

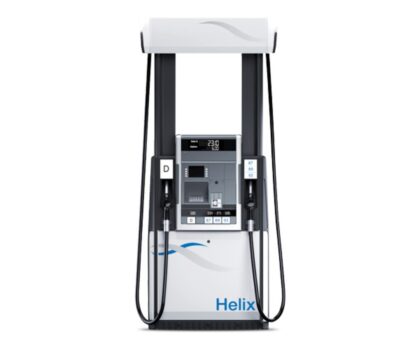

Helix 4000

Helix 4000

Helix 4000 offers a sleek iconic look in a small footprint and can accommodate up to three meters and up to four hoses. Take advantage of multiple configurations, blending and non-blending, payment, and variable flow rates.

Grades 1-2 grades (3-4 with blending)
Nozzles 1-2 per side (as single and dual)
Flowrates 40 / 70 / 40-70 / 120
Orientation Lane
Hose handling Hanging hoses 3 m reach - Hose retraction 4 m reach
Meter technology iMeter - Xflo

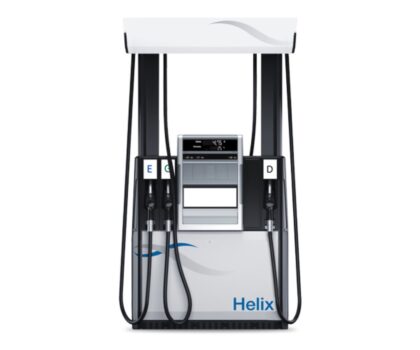

Helix 5000

Helix 5000

Helix 5000 holds the aesthetics and capabilities of the Helix 4000 dispenser, but has greater flexibility that can handle up to four meters and up to an eight-hose configuration.

Grades 1-4 grades (5 with blending)
Nozzles 1-4 per side (as single and dual)
Flowrates 40 / 70 / 40-70 / 120
Orientation Lane
Hose handling Hanging hoses 3 m reach - Hose retraction 4 m reach
Meter technology iMeter - Xflo

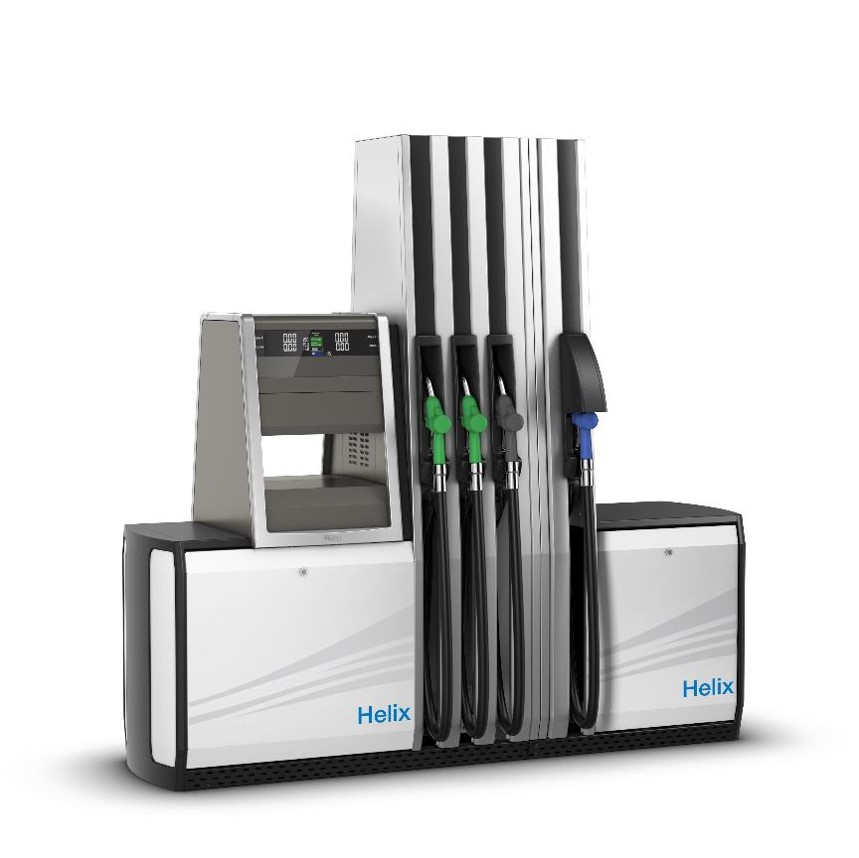

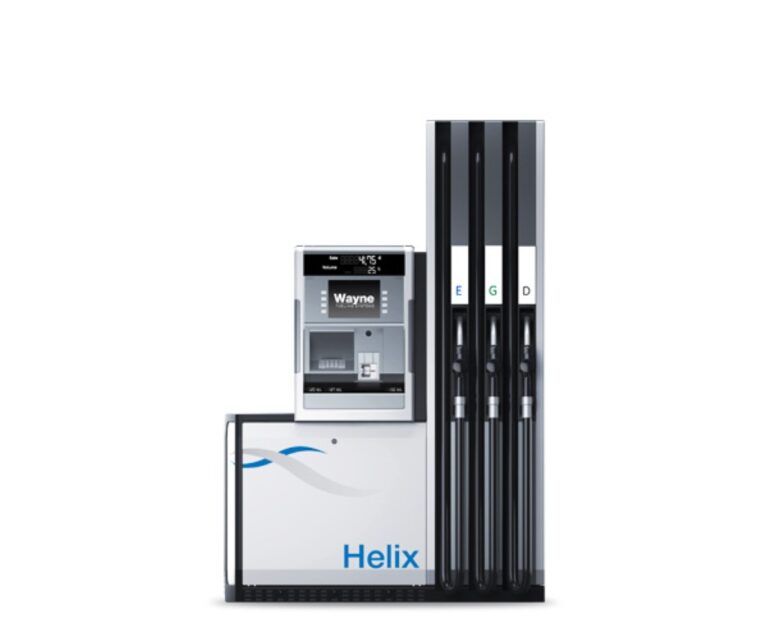

Helix 6000

Helix 6000

Helix 6000 moves all the features and benefits from the family into a different frame. Positioning the hoses to one side of the user interface ensure a flexible dispenser size with footprint reflecting number of hoes with possibilities for up to 5 grades in one frame.

Grades 1-4 grades (blending available)
Nozzles 1-5 per side (as single and dual)
Flowrates 40 / 70 / 40-70 / 120
Orientation Lane
Hose handling Hose retraction: simplified 3,5 m reach, advanced 4 m reach
Meter technology iMeter - Xflo

Service and maintenance features

Hydraulic cabinet



  • Access from front and side, and partly from top
  • Highly accessible filters with no need touching filters during exchange
  • Framework of square tubes makes cabinet airy and components easy to access
  • No sharp edges in maintenance areas
  • Common filter/strainer for all meters

Electronic head

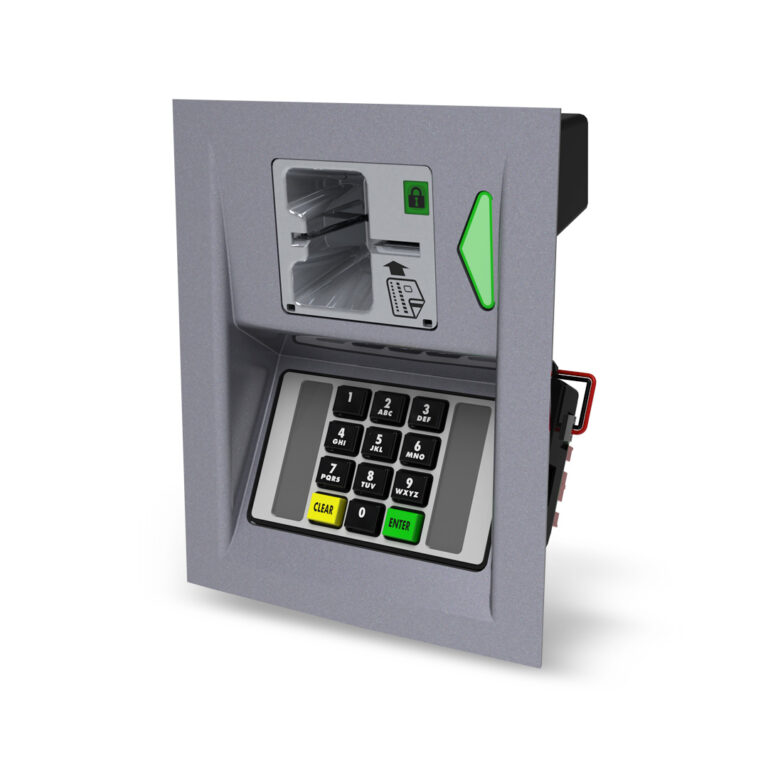

  • Payment module is separated for remote service possibilities
  • Sales and volume display with visible service codes for easy error seeking and problem ID
  • Cable wiring tidy with unique cable routing
  • End connectors on all cables for easy plug-in

Optimized for service

Filter spill funnel
Fuel-drip gutter captures fuel drips at the nozzle boot
Quick-connect inlet assembly
Compact pumping unit with new filter and housing
Triple bump connections with easier tube insertion/removal
Global service components — Makes obtaining and replacing serviceable parts consistent and easy
