Retailers
need any advantage that can help to increase their volume, create customer loyalty and help drive customers into the store.
-
Technicians
need to work quickly and more efficiently these days, so they need dispensers that not only simplify maintenance, but also require less of it.
-
Motorists
just want to get in, get what they need, and get on with their day. They want to feel safe. They want clean fueling. And they may even want a snack.
Our partner
The Helix dispenser is designed for them
The benefits of Helix
- Smart design to enhance customer brand space
- Improve attendant & motorist visibility across the forecourt
- Minimize the effects of dirt & wear to maintain a clean appearance
- Developed the Wayne Way with state of the art solutions

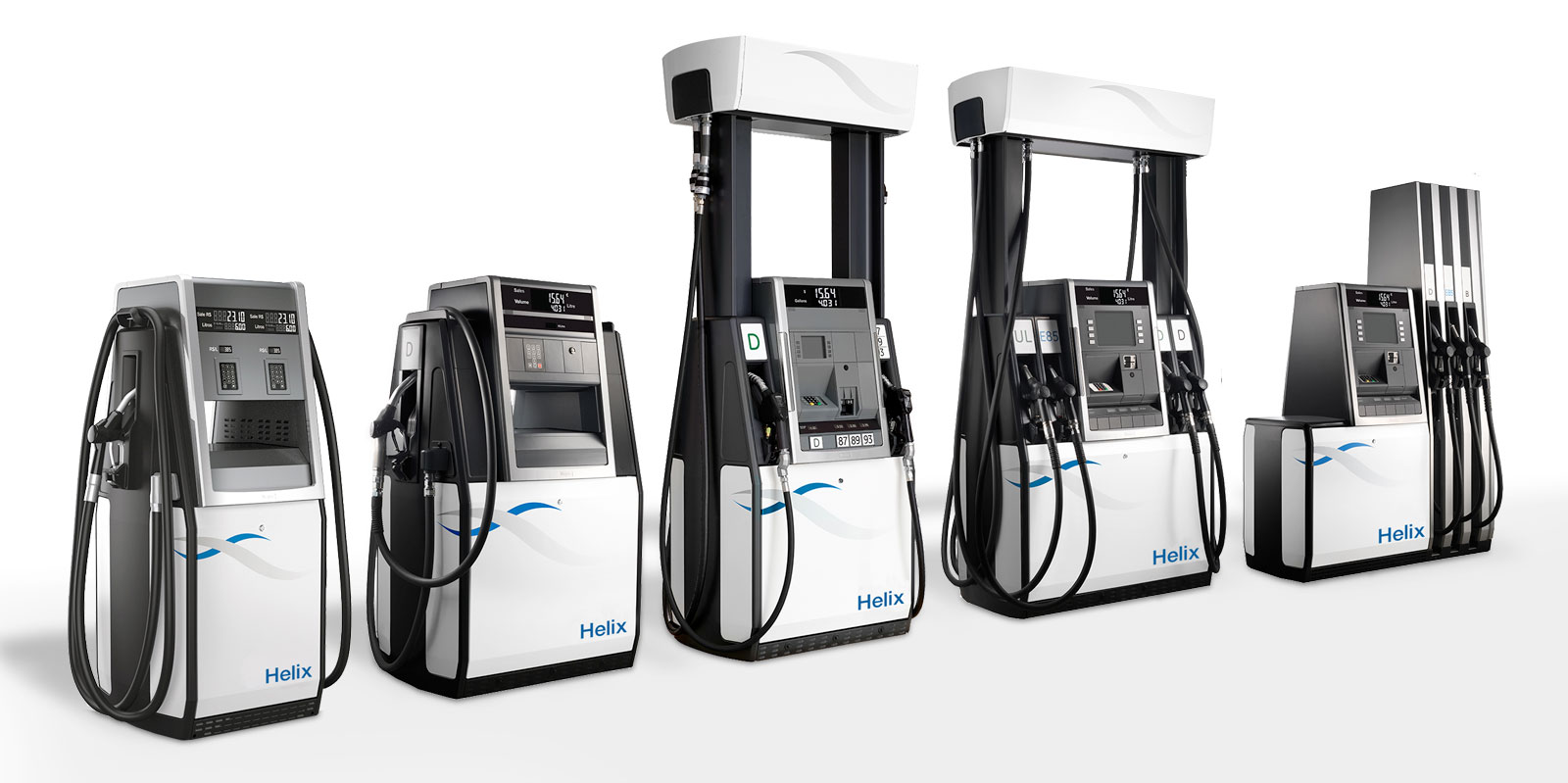

The Wayne Helix dispenser family
Designed for you. Engineered for the world.
Helix 1000
![]()
Helix 1000
Helix 1000 holds the smallest footprint in the Helix family. Equipped with the same Wayne DNA and core technologies as the rest of the family, the Helix 1000 is ideal for customers looking for basic features, high quality and reliability.
| Grades | 1-2 grades |
|---|---|
| Nozzles | 1-2 nozzles |
| Flowrates | 40 / 70 / 40-70 / 90 / 120 |
| Orientation | Island |
| Hose handling | Hose hook 4,5 reach - Hose mast 3,5 reach |
| Meter technology | iMeter |
Helix 2000
![]()
Helix 2000
If working within a confined site, Helix 2000 delivers practicality and the latest features in a small package — ideal for small retail service stations, truck stops and specialty applications like marinas or airports.
| Grades | 1-2 grades |
|---|---|
| Nozzles | 1-2 nozzles |
| Flowrates | 40 / 70 / 40-70 / 90 / 120 / 180 |
| Orientation | Island - Lane |
| Hose handling | Hose hook 4,5 reach - Hose mast 3,5 reach |
| Meter technology | iMeter - Xflo |
Helix 4000
![]()
Helix 4000
Helix 4000 offers a sleek iconic look in a small footprint and can accommodate up to three meters and up to four hoses. Take advantage of multiple configurations, blending and non-blending, payment, and variable flow rates.
| Grades | 1-2 grades (3-4 with blending) |
|---|---|
| Nozzles | 1-2 per side (as single and dual) |
| Flowrates | 40 / 70 / 40-70 / 120 |
| Orientation | Lane |
| Hose handling | Hanging hoses 3 m reach - Hose retraction 4 m reach |
| Meter technology | iMeter - Xflo |
Helix 5000
![]()
Helix 5000
Helix 5000 holds the aesthetics and capabilities of the Helix 4000 dispenser, but has greater flexibility that can handle up to four meters and up to an eight-hose configuration.
| Grades | 1-4 grades (5 with blending) |
|---|---|
| Nozzles | 1-4 per side (as single and dual) |
| Flowrates | 40 / 70 / 40-70 / 120 |
| Orientation | Lane |
| Hose handling | Hanging hoses 3 m reach - Hose retraction 4 m reach |
| Meter technology | iMeter - Xflo |
Helix 6000
![]()
Helix 6000
Helix 6000 moves all the features and benefits from the family into a different frame. Positioning the hoses to one side of the user interface ensure a flexible dispenser size with footprint reflecting number of hoes with possibilities for up to 5 grades in one frame.
| Grades | 1-4 grades (blending available) |
|---|---|
| Nozzles | 1-5 per side (as single and dual) |
| Flowrates | 40 / 70 / 40-70 / 120 |
| Orientation | Lane |
| Hose handling | Hose retraction: simplified 3,5 m reach, advanced 4 m reach |
| Meter technology | iMeter - Xflo |
Service and maintenance features
Hydraulic cabinet
- Access from front and side, and partly from top
- Highly accessible filters with no need touching filters during exchange
- Framework of square tubes makes cabinet airy and components easy to access
- No sharp edges in maintenance areas
- Common filter/strainer for all meters
Electronic head
- Payment module is separated for remote service possibilities
- Sales and volume display with visible service codes for easy error seeking and problem ID
- Cable wiring tidy with unique cable routing
- End connectors on all cables for easy plug-in
Optimized for service
Filter spill funnel
Fuel-drip gutter captures fuel drips at the nozzle boot
Quick-connect inlet assembly
Compact pumping unit with new filter and housing
Triple bump connections with easier tube insertion/removal
Global service components — Makes obtaining and replacing serviceable parts consistent and easy
